Product Summary

Approximately half the size of the UY2-3M Connector can handle a higher pair count cable and keep the splicing bundle O.D. to a minimum. The UY2-3M閳ユ獨 two ports accept any two solid copper conductor combinations of 19-26 AWG (0.9 mm - 0.4 mm) filled or air core cable with a maximum insulation O.D. of .082" (2.08 mm). The wires joined can be of different wire gauges. Factory inserted sealant insulates the connections, protects against corrosion, and seals out moisture. The UY2-3M is available in box, bulk, bin and cartridge.

Parametrics

Product Specifications: (1)MAXIMUM INSULATION O.D. in.: 082; (2)MAXIMUM INSULATION O.D. Metric (mm): 2.08; (3)PIC-unfilled AWG: 9-26; (4)PIC-unfilled Metric (mm): 0.9-0.4; (5)PIC-filled AWG: 19-26; (6)PIC-filled Metric (mm): 0.9-0.4; (7)Pulp or Paper AWG: 19-26; (8)Pulp or Paper Metric (mm): 0.9-0.4.

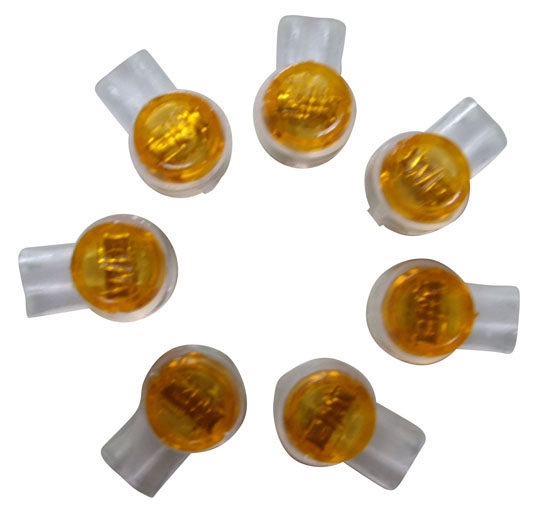

Diagrams

<IMG src="http://www.seekic.com/uploadfile/ic-mfg/201138191911615.jpg" border=0>

UY2-25/PACK
UY2-25/PACK
3M Electronic Specialty
Terminals 19-26 AWG BUTT CONN PACK OF 25
Data Sheet
0-1: $2.73
1-5: $2.59
5-10: $2.47
10-50: $2.35
UY2-JAR500
UY2-JAR500
3M Electronic Specialty
Terminals 19-26 AWG BUTT CONN JAR OF 500
Data Sheet
0-1: $35.80
1-5: $33.94
5-10: $31.21
10-50: $29.03
UY2-PK50
UY2-PK50
3M Electronic Specialty
Terminals 19-26 AWG BUTT CONN PACK OF 50
Data Sheet
0-1: $3.91
1-5: $3.70
5-10: $3.41
10-50: $3.17
UY2-D(CART)
UY2-D(CART)

SCOTCHLOK BUTT CONN DRY 19-26AWG
Data Sheet
0-1: $1.43
1-10: $1.30
10-25: $1.22
25-50: $1.16
50-100: $1.11
100-250: $1.01
250-500: $0.93
500-1000: $0.79
1000-2500: $0.74
