Product Summary

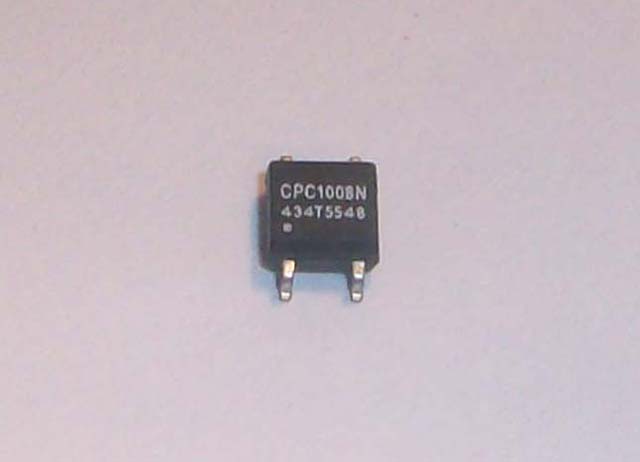

The CPC1008N is a miniature low voltage, low on resistance 1-Form-A solid state relay in a 4 pin SOP package. The relay uses optically coupled MOSFET technology to pro-vide 1500V of input to utput isolation. The efficient MOS-FET switches and photovoltaic die use Clare鈥檚 patented OptoMOS? architecture. The optically-coupled input is controlled by a highly efficient GaAIAs infrared LED. The CPC1008N uses Clare鈥檚 state of the art double molded vertical construction packaging to produce the world鈥檚 smallest relay. The CPC1008N is ideal for replacing larger less reliable reed and electromechanical relays.

Parametrics

Absolute maximum ratings: (1)Input Power Dissipation: 70 mW; (2)Input Control Current: 50 mA; Peak (10ms): 1 A; (3)Reverse Input Voltage: 5 V; (4)Total Power Dissipation: 400 mW; (5)Capacitance, Input to Output: 1 pF; (6)Isolation Voltage, Input to Output: 1500 VRMS; (7)Operational Temperature: -40 to +85鈩? (8)Storage Temperature: -40 to +125鈩? (9)Soldering Temperature (10 Seconds Max.): +220鈩?

Features

Features: (1)Small 4 Pin SOP Package; (2)Low Drive Power Requirements (TTL/CMOS Compatible); (3)No Moving Parts; (4)High Reliability; (5)Arc-Free With No Snubbing Circuits; (6)1500VRMS Input/Output Isolation; (7)FCC Compatible; (8)No EMI/RFI Generation; (9)Machine Insertable, Wave Solderable; (10)Tape and Reel Version Available.

Diagrams

<IMG src="http://www.seekic.com/uploadfile/ic-mfg/20113203553406.jpg" border=0>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CPC1008N
CPC1008N
Clare
Solid State Relays SPST-NO 4PIN SOP
Data Sheet
Negotiable
CPC1008NTR
CPC1008NTR
Clare
Solid State Relays 1-Form-A solid state relay - 4-Pin
Data Sheet
Negotiable
