Product Summary

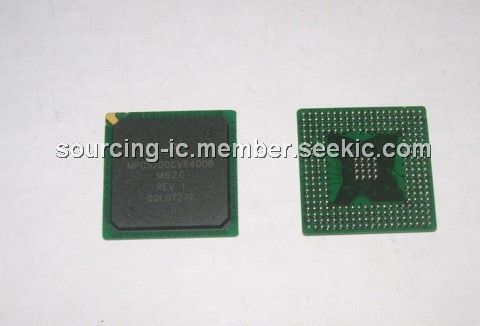

The MPC5200CVR400B integrates a high performance MPC603e series e300 core with a rich set of peripheral functions focused on communications and systems integration. The e300 core design is based on the PowerPC core architecture. In addition, the device incorporates an innovative BestComm I/O subsystem, which isolates routine maintenance of peripheral functions from the embedded e300 core. The device includes SDRAM/DDR Memory Controller, a flexible External Bus Interface, PCI Controller, USB, ATA, Ethernet, six Programmable Serial Controllers (PSC), I2C, SPI, CAN, J1850, Timers, and GPIOs.
Parametrics
Absolute maximum ratings: (1)Supply voltage - e300 core and peripheral logic, VDD_CORE: 鈥?.3 to 1.8 V; (2)Supply voltage - I/O buffers VDD_IO, VDD_MEM_IO: 鈥?.3 to 3.6 V; (3)Supply voltage - System APLL, SYS_PLL_AVDD: 鈥?.3 to 2.1 V ; (4)Supply voltage - e300 APLL, CORE_PLL_AVDD: 鈥?.3 to 2.1 V ; (5)Input voltage (VDD_IO), Vin: 鈥?.3 to VDD_IO + 0.3 V; (6)Input voltage (VDD_MEM_IO), Vin: 鈥?.3 to VDD_MEM_IO+ 0.3 V; (7)Input voltage overshoot, Vinos: 鈥?1.0 V; (8)Input voltage undershoot, Vinus: 鈥?1.0 V; (9)Storage temperature range, Tstg: 鈥?5 to 150鈩?
Features
Features: (1)MPC603e series e300 core; (2)SDRAM / DDR Memory Interface; (3)Flexible multi-function External Bus Interface; (4)Peripheral Component Interconnect (PCI) Controller; (5)ATA Controller; (6)BestComm DMA subsystem; (7)6 Programmable Serial Controllers (PSC); (8)Fast Ethernet Controller (FEC); (9)Universal Serial Bus Controller (USB); (10)Two Inter-Integrated Circuit Interfaces (I2C); (11)Serial Peripheral Interface (SPI); (12)Dual CAN 2.0 A/B Controller (MSCAN); (13)J1850 Byte Data Link Controller (BDLC); (14)On-board PLL and clock generation.
Diagrams
<P><IMG src="http://www.seekic.com/uploadfile/ic-mfg/20113301829602.jpg" border=0></P>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPC5200CVR400B |
Freescale Semiconductor |
Microprocessors (MPU) HABANERO INDUS PBFREE |
Data Sheet |
|
|
||||||||||||
