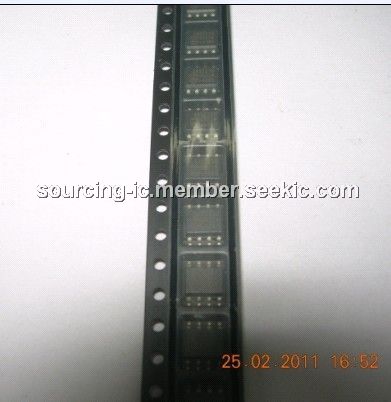

SA5223D

The SA5223D is a kind of AGC transimpedance amplifier.

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: SA5223D

Brand:: | Pack: SO | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. AMY's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-26

From Other Seller

Part Number:SA5223D
US $1.00 - 1.50
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SA5223D is a kind of AGC transimpedance amplifier. It is intended for signal recovery in wide-dynamic-range fiber optic receivers, such as SONET. It is also suitable for many other RF and fiber optic applications as a general purpose gain block. In addition, it is the first AGC amplifier to incorporate internal AGC loop hold capacitor, therefore, no external components are required. The internal AGC loop enables the SA5223 to effortlessly handle bursty data over a range of nA to mA of signal current, positive direction (sinking) only. The typical applications include: (1)OC3 SONET preamp; (2)Current-to-voltage converters; (3)Wide-band gain block; (4)Medical and scientific instrumentation; (5)Sensor preamplifiers; (6)Single-ended to differential conversion; (7)Low noise RF amplifiers; (8)RF signal processing.

Parametrics

Absolute maximum ratings: (1)VCC, Power supply voltage: 6 V; (2)TA, Ambient temperature range: -40 to +85 鈩? (3)TJ, Junction temperature range: -55 to +150鈩? (4)TSTG, Storage temperature range: -65 to +150鈩? (5)PD, Power dissipation TA = 25鈩?(still air): 0.78 W; (6)IINMAX, Maximum input current: 5 mA.

Features

Features: (1)Extremely low noise:1.17pA Hz; (2)Single 5V supply; (3)Low supply current: 22mA; (4)Large bandwidth: 150MHz; (5)Differential outputs; (6)Internal hold capacitor; (7)Low input/output impedances; (8)High power-supply-rejection ratio: 55dB; (9)Tight transresistance control; (10)High input overload: 4mA; (11)2000V HBM ESD protection.
