Product Summary

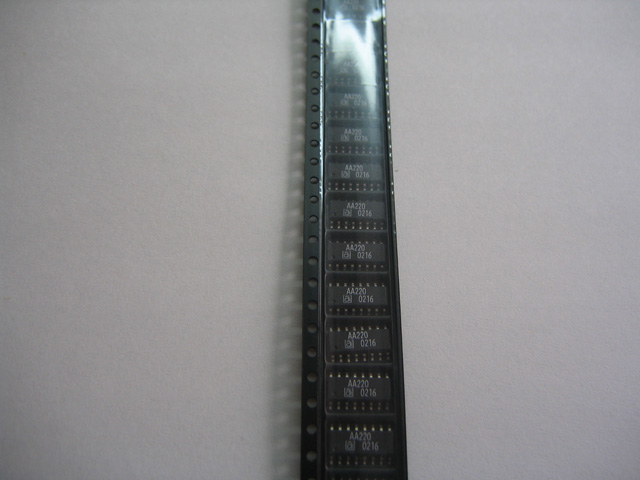

The AA220-25 is a kind of GaAs IC 4 Bit Digital Attenuator. It includes four monolithic attenuators with LSB of 2 dB and a total attenuation of 30 dB with all attenuators connected. It is suitable for applications where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include cellular, radio, wireless data, wireless local loop and other gain level control circuits.
Parametrics
Absolute maximum ratings: (1)RF Input Power: 2 W > 500 MHz 0/-8 V; 0.5 W @ 50 MHz 0/-8 V; (2)Control Voltage: +0.2 V, -8 V; (3)Operating Temperature: -40鈩?to +85鈩? (4)Storage Temperature: -65鈩?to +150鈩?
Features
Features: (1)Attenuation in 2 dB Steps to 30 dB with High Accuracy; (2)Low Cost SOIC-16 Plastic Package; (3)Low DC Power Consumption.
Diagrams
<IMG src="http://www.seekic.com/uploadfile/ic-mfg/201131215040971.jpg" border=0>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AA220-25 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
